600X Solenoid Control Valves

600X Solenoid Control Valves

  • Min.Order Quantity: 50 Pieces
  • Supply Ability: 500 Pieces per Month
  • Port: Tianjin
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Piece/Pieces
| Factory
Experience:2014-06-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  Hebei
  • Brand Name:  Trueplate
  • Model Number:  QYFM-25
  • Weight: 1.000 kg

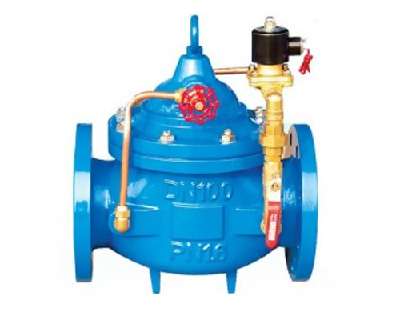

600X Solenoid Control Valves


Product Presentation:

This valve is used as an equipment to open and close pipeline and set with a small solenoid valve to control the main valve to open and close can carry out remote and local controls.

Characteristics:
Easy installation and use ,no complicated electric sensing mechanism with the control portion, uneasy to be failed, easily set table. compared with the conventional valves,featuring a small volume, alight weight, a small power, easy repair ,convenient, safe and reliable use.

Principle:
The pilot valve comes as a solenoid valve and then the solenoid valve is opened,the upper cavity pressure of the diaphragm will be reduced and the main valve is opened.the solenoid valve is closed and so os the main valve. opened.the solenoid valve is closed and so os the main valve. There are normal open and normal close two types of solenoid valve.the normally supplied is normal close one. An explosion-proof type solenoid can also be allocated.

Parameters:

Nominal Pressure(Mpa)

Body Testing Pressure(MPa)

Sealing Testing Pressure(MPa)

Medium

Medium Temperature(℃)

1.0

1.5

1.1

Water

0-80

1.6

2.4

1.76

2.5

3.75

2.75



Main parts and Materials

Name of partsMaterial
Body、BonnetCast Iron、Cast Steel、Stainless Steel
Valve SeatTin bronze, stainless steel
DiscCarbon steel, stainless steel + NBR
StemAluminum steel, chromium stainless steel
DiaphragmNitrile rubber
Diaphragm pressure plateCarbon Steel、Stainless Steel
Spring Stainless Steel


Hebei Quanyi Machinery Co., Ltd  is able to design and manufactures various of Hydraulic Control Valves .




Hebei Quanyi Machinery Co.,Ltd is devoted to offering the best and varies Industrial Valves, such as :

(1) Butterfly Valves

(2) Soft Sealed Gate Valves

(3) Gate Valves

(4) Hydraulic Control Valves

(5) Valves Parts castings.

We also supply other Castings Parts. Special size and specification could be customized.


We have specialized in this field for several years and have formed a complete system of design, casting, machining, assembly and installation.
