Rising stem resilient seated gate valves

Rising stem resilient seated gate valves

  • Min.Order Quantity: 50 Pieces
  • Supply Ability: 500 Pieces per Month
  • Port: Tianjin
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Piece/Pieces
Verified Supplier Hebei Quanyi Manacinery CO. Ltd.
| Factory
Experience:2014-06-16
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  Hebei
  • Brand Name:  Trueplate
  • Model Number:  QYFM-20
  • Weight: 1.000 kg

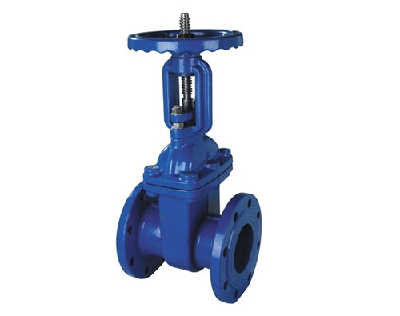

Rising stem resilient seated gate valves


Product Presentation:


The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

Characteristics:
1. The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2. Both gate and aluminum bronze bearing are in in aid design good self lubrication, high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3. Rubber wrapped gate anti-corrosion, good tightness.
4. Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5. The body is designed without gate slot,the smooth passage will not get impurities filling up , more applicable for sewage working condition.
6. The integral seal works raliably. For the high pressure seal, leaving zero leakage under1.5 times nominal pressure and ,for the low pressure one ,under 0.02Mpa.

Main performance parameters:
Testing Standard: GB13927 AP1598
Nominal Diameter: 50～400mm
Working Temperature:0～80℃
Mominal Pressure:1.0～2.5MPa
   Medium;: Water、Oil、Gas, etc.
Flange: GB/T 17241.6 GB9113


Customized valves are acceptable. Hebei Quanyi Machinery Co., Ltd is able to design and produce standard and non-standard resilient gate valves.Available diameter range: DN40~DN 1100.


Hebei Quanyi Machinery Co.,Ltd is devoted to offering the best and varies Industrial Valves, such as :

(1) Butterfly Valves

(2) Soft Sealed Gate Valves

(3) Gate Valves

(4) Hydraulic Control Valves

(5) Valves Parts castings.

We also supply other Castings Parts. Special size and specification could be customized.


We have specialized in this field for several years and have formed a complete system of design, casting, machining, assembly and installation.
