- Size: 1
- Place of Origin: Hebei
- Brand Name: Trueplate
- Model Number: QYZT-22
- Weight: 1.000 kg
- :
Hebei Quanyi Machinery Co.,Ltd is devoted to offering the best machine tools and measuring instruments.

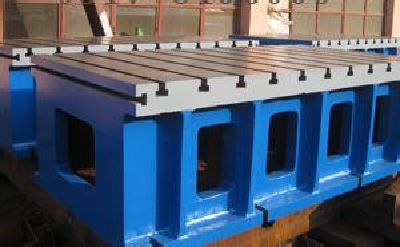

Usage: Inspecting the spare parts’ parallelism & perpendicularity
Material: Cast Iron
Origin: China
Specifications (mm) | Parallelism | Parallelism and Perpendicularity | ||||
Precision Grade ( μ m) | ||||||
100 × 100 × 100 | 3.5 | 7 | 15 | 7 | 15 | 30 |
150* × 150 × 150 | 4 | 9 | 17 | 8 | 18 | 35 |
200 × 200 × 200 | 4.5 | 10 | 20 | 9 | 20 | 40 |
250 × 25 0 × 250 | 5 | 11 | 22 | 10 | 22 | 45 |
300 × 300 × 300 | 5.5 | 12 | 25 | 11 | 25 | 50 |
3 50 × 3 50 × 3 50 | 6 | 13 | 27 | 12 | 27 | 55 |
400 × 400 × 400 | 6.5 | 15 | 30 | 13 | 30 | 60 |
500 × 500 × 500 | 8 | 17 | 35 | 15 | 35 | 70 |
PS: Special specifications (100mm × 100mm × 100mm ~ 2500mm × 2000mm × 4000mm) are acceptable as per customers ’ drawings or requirements.
