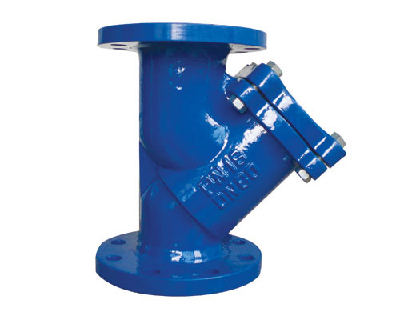

Product Presentation:

The product is mainly installed on all kinds of water supply and drainage pipeline or steam pipeline and gas pipeline. Used to protect the rest of the fitting or protect valve from debris and damage of impurity in the system. The strainer may be used on all types of pipelines to collect granulated foreign substances and contaminants collected.It can improve the clearance in the medium, and prolong the life of valves and other equipment.

Technical parameters;

1. Nominal Diameter: DN40-DN 300

2. Working Pressure: PN10/PN16

3. Face-to-face: DIN 3202-F1/EN 558-1

4. Flange Drilling: DIN 2533/EN 1092-2 PN 16

      5. Test standard: DIN 3230 PN10/PN16/EN 12266-1

Material and main parts:

  Body: Cast iron or Ductile iron

Bonnet: Cast iron or Ductile iron

Screen: Stainless steel.

Drain plug: Carbon steel.

Scope of application:

    1. Week corrosively medium for petrochemical production such as Water, ammonia, oil, hydrocarbon products, etc.

    2. Corrosive materials In the production of chemical product such as caustic soda, strong dilute sulphuric acid, carbonic acid, fatty acid, acetic acid.

 3. Low temperature refrigeration materials: Liquid methane, liquid ammonia and all kinds of cold agent
